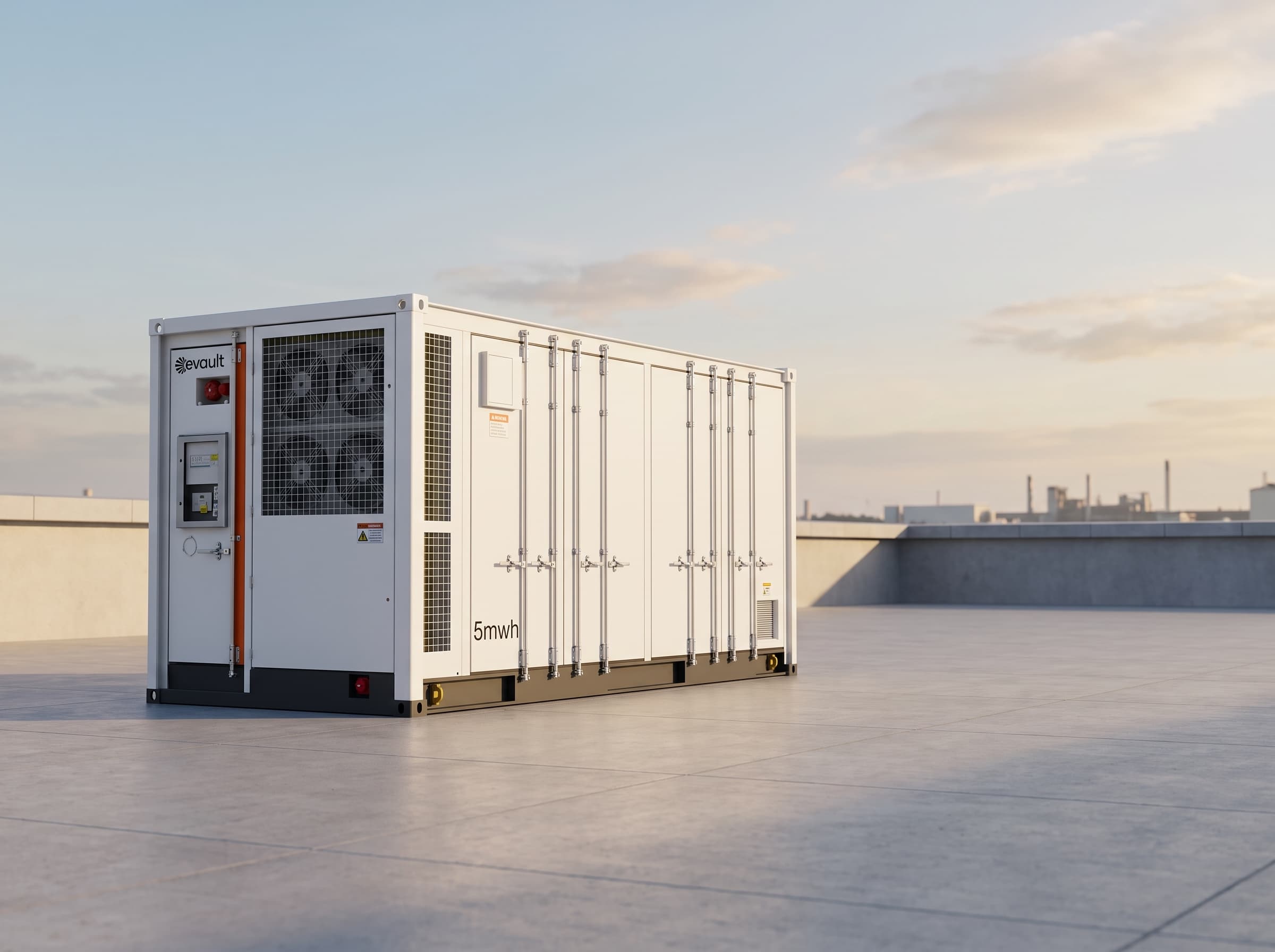

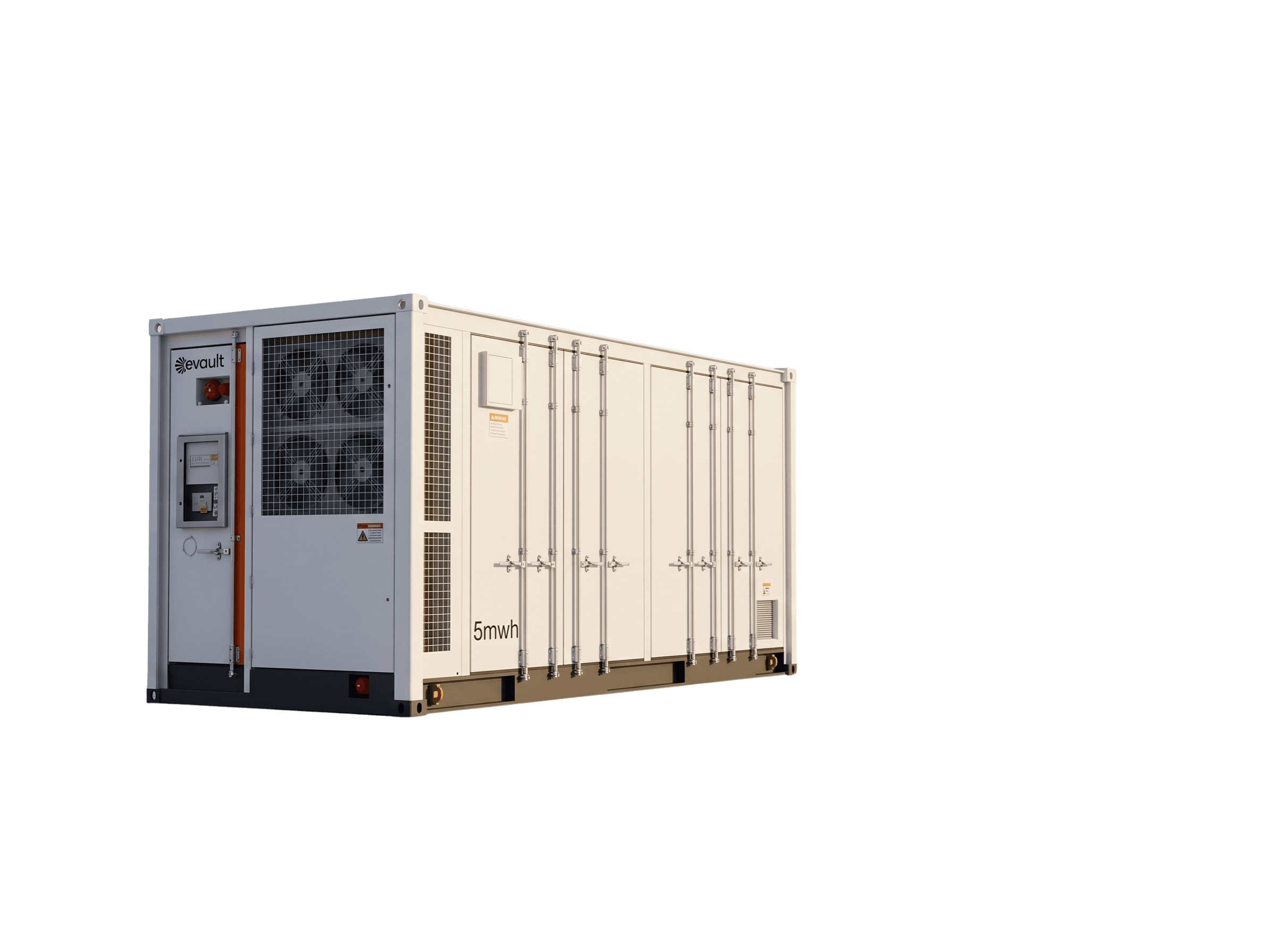

5 MWh DC Block
TITAN
Multi-Layer
Fire Protection
5 MWh
High Energy Density
BMS + PCS + EMS
Integrated
8000+
Cycles
Grid-Scale Energy Storage
Built for the infrastructure that holds the country together. SECI tenders. State DISCOM stabilisation. Renewable integration at a scale where performance is measured in years, not months, and where a system failure is not an operational inconvenience - it is a grid event. Every TITAN deployment carries the same promise as every CORE: 72-hour module replacement, anywhere in India, for 10 years, with no fine print. At grid scale, that level of commitment is not standard in this market. At Evault, it is the minimum.
Battery
Cell type
LFP 3.2V / 314 Ah
Battery capacity
5 MWh DC Block
Rated Voltage
1,331.2 V
C-Rate
≤ 0.5P
Discharge Efficiency
94%
DoD
90% (adjustable 0-100%)
Cycle Life
≥ 8,000 cycles
Protection & Environment
IP Rating
IP55 (Pack IP67)
Operating Temperature Range
Charge: 0°C to 55°C | Discharge: -20°C to 55°C
Fire Protection System
Fire aerosol + water spray (pack and container-level)
Cooling Method
Intelligent liquid cooling
Altitude
3,000 m (derating above 2,000 m)
Communication & Compliance
Communication Protocols
CAN / RS485 / LAN
Compliance
IEC 62933-5-1, IEC 62933-5-2, UL 9540A, IEC 62619
Weight
~ 43 T
Dimensions
6,058 x 2,438 x 2,896 mm (20-ft container)
